Illés, Balázs and Krammer, Olivér and Géczy, Attila (2020) Introduction to Surface-Mount Technology. In: Reflow Soldering – Apparatus and Heat Transfer Processes. Elsevier, Amszterdam, Hollandia, pp. 1-62. ISBN 9780128185056
|
Text

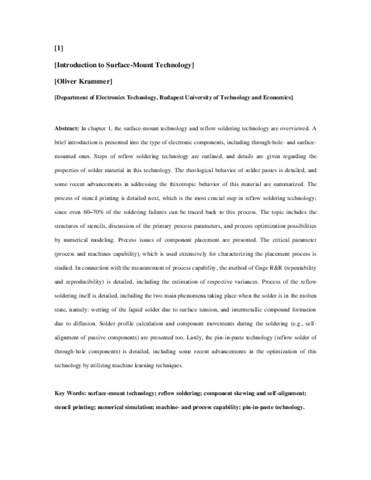

CH0001_Krammer_v1.pdf Download (3MB) | Preview |
Abstract
In chapter 1, the surface-mount technology and reflow soldering technology are overviewed. A brief introduction is presented into the type of electronic components, including through-hole- and surface-mounted ones. Steps of reflow soldering technology are outlined, and details are given regarding the properties of solder material in this technology. The rheological behavior of solder pastes is detailed, and some recent advancements in addressing the thixotropic behavior of this material are summarized. The process of stencil printing is detailed next, which is the most crucial step in reflow soldering technology; since even 60–70% of the soldering failures can be traced back to this process. The topic includes the structures of stencils, discussion of the primary process parameters, and process optimization possibilities by numerical modeling. Process issues of component placement are presented. The critical parameter (process and machines capability), which is used extensively for characterizing the placement process is studied. In connection with the measurement of process capability, the method of Gage R&R (repeatability and reproducibility) is detailed, including the estimation of respective variances. Process of the reflow soldering itself is detailed, including the two main phenomena taking place when the solder is in the molten state, namely: wetting of the liquid solder due to surface tension, and intermetallic compound formation due to diffusion. Solder profile calculation and component movements during the soldering (e.g., self-alignment of passive components) are presented too. Lastly, the pin-in-paste technology (reflow solder of through-hole components) is detailed, including some recent advancements in the optimization of this technology by utilizing machine learning techniques.
Item Type: | Book Section |
---|---|
Subjects: | T Technology / alkalmazott, műszaki tudományok > TJ Mechanical engineering and machinery / gépészmérnöki tudományok T Technology / alkalmazott, műszaki tudományok > TK Electrical engineering. Electronics Nuclear engineering / elektrotechnika, elektronika, atomtechnika |
Depositing User: | Dr. Krammer Olivér |
Date Deposited: | 28 Sep 2020 10:01 |
Last Modified: | 28 Sep 2020 10:01 |
URI: | http://real.mtak.hu/id/eprint/115058 |
