Evaluation of contact force distribution along a curve, based on measured electric potentials

Magyar, Bálint and Wohlfart, Richárd and Zana, Roland and Hénap, Gábor and Csernák, Gábor and Stepan, Gábor (2021) Evaluation of contact force distribution along a curve, based on measured electric potentials. Acta Mechanica (232). pp. 853-879. ISSN 0001-5970

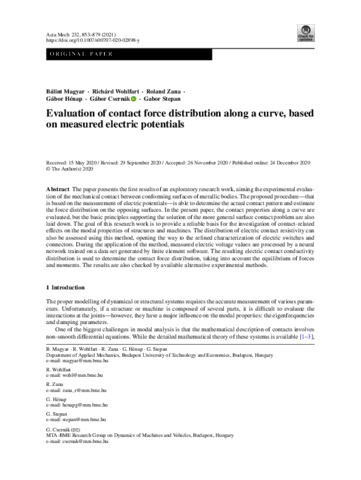

Preview

Text s00707-020-02898-y.pdf Available under License Creative Commons Attribution. Download (2MB) | Preview

Abstract

The paper presents the first results of an exploratory research work, aiming the experimental evaluation of the mechanical contact between conforming surfaces of metallic bodies. The proposed procedure—that is based on the measurement of electric potentials—is able to determine the actual contact pattern and estimate the force distribution on the opposing surfaces. In the present paper, the contact properties along a curve are evaluated, but the basic principles supporting the solution of the more general surface contact problem are also laid down. The goal of this research work is to provide a reliable basis for the investigation of contact-related effects on the modal properties of structures and machines. The distribution of electric contact resistivity can also be assessed using this method, opening the way to the refined characterization of electric switches and connectors. During the application of the method, measured electric voltage values are processed by a neural network trained on a data set generated by finite element software. The resulting electric contact conductivity distribution is used to determine the contact force distribution, taking into account the equilibrium of forces and moments. The results are also checked by available alternative experimental methods.
