Shocks and Tides Quantified in the “Sausage” Cluster, CIZA J2242.8+5301 Using N-body/Hydrodynamical Simulations

Molnár, Sándor Mihály and Broadhurst, T. (2017) Shocks and Tides Quantified in the “Sausage” Cluster, CIZA J2242.8+5301 Using N-body/Hydrodynamical Simulations. ASTROPHYSICAL JOURNAL, 841. ISSN 1538-4357

Preview

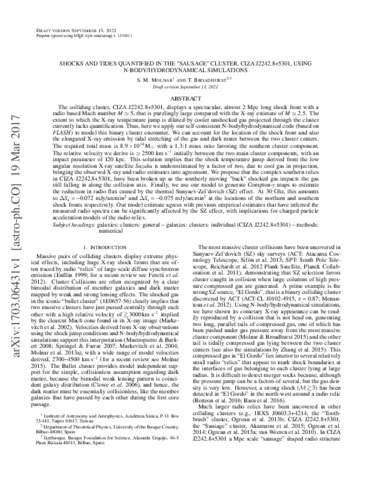

Text 1703.06431.pdf Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

The colliding cluster, CIZA J2242.8+5301, displays a spectacular, almost 2 Mpc long shock front with a radio based Mach number M≃ 5, that is puzzlingly large compared to the X-ray estimate of M≃ 2.5. The extent to which the X-ray temperature jump is diluted by cooler unshocked gas projected through the cluster currently lacks quantification. Here we apply our self-consistent N-body/hydrodynamical code (based on FLASH) to model this binary cluster encounter. We can account for the location of the shock front and also the elongated X-ray emission by tidal stretching of the gas and dark matter between the two cluster centers. The required total mass is 8.9× {10}14 {M}⊙ with a 1.3:1 mass ratio favoring the southern cluster component. The relative velocity we derive is ≃ 2500 {km} {{{s}}}-1 initially between the two main cluster components, with an impact parameter of 120 kpc. This solution implies that the shock temperature jump derived from the low angular resolution X-ray satellite Suzaku is underestimated by a factor of two, due to cool gas in projection, bringing the observed X-ray and radio estimates into agreement. Finally, we use our model to generate Compton-y maps to estimate the thermal Sunyaev-Zel’dovich (SZ) effect. At 30 GHz, this amounts to {{Δ }}{S}n=-0.072 mJy/arcmin2 and {{Δ }}{S}s=-0.075 mJy/arcmin2 at the locations of the northern and southern shock fronts respectively. Our model estimate agrees with previous empirical estimates that have inferred the measured radio spectra of the radio relics can be significantly affected by the SZ effect, with implications for charged particle acceleration models.
