Behavior of L-shaped Steel Angle Under Prying Force Using Revit Program

Almosawi, Ammar Jalil and Hiswa, Ashraf A. M. R. and Sheer Ali, Tawfek (2023) Behavior of L-shaped Steel Angle Under Prying Force Using Revit Program. POLLACK PERIODICA : AN INTERNATIONAL JOURNAL FOR ENGINEERING AND INFORMATION SCIENCES, 18 (2). pp. 12-16. ISSN 1788-1994 (print); 1788-3911 (online)

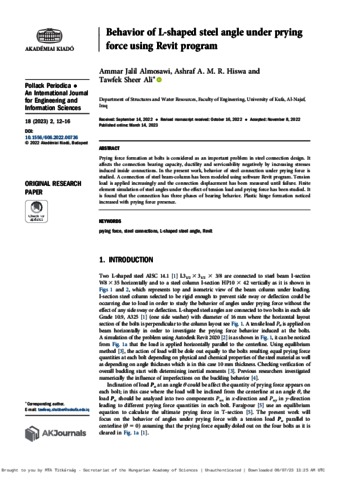

Text 606-article-p12.pdf Restricted to Repository staff only until 11 July 2025. Download (1MB)

Abstract

Prying force formation at bolts is considered as an important problem in steel connection design. It affects the connection bearing capacity, ductility and serviceability negatively by increasing stresses induced inside connections. In the present work, behavior of steel connection under prying force is studied. A connection of steel beam-column has been modeled using software Revit program. Tension load is applied increasingly and the connection displacement has been measured until failure. Finite element simulation of steel angles under the effect of tension load and prying force has been studied. It is found that the connection has three phases of bearing behavior. Plastic hinge formation noticed increased with prying force presence.
