Comparative Study on the Optimal Topologies

Tóth, Bálint and Bruggi, Matteo and Lógó, János (2023) Comparative Study on the Optimal Topologies. ÉPÍTÉS-ÉPÍTÉSZETTUDOMÁNY, 51 (3-4). pp. 195-213. ISSN 0013-9661

Preview

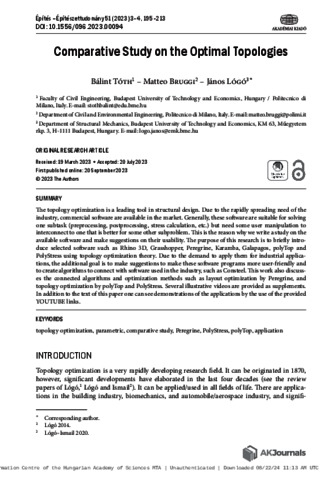

Text 096-article-p195.pdf - Published Version Available under License Creative Commons Attribution. Download (2MB) | Preview

Abstract

The topology optimization is a leading tool in structural design. Due to the rapidly spreading need of the industry, commercial software are available in the market. Generally, these software are suitable for solving one subtask (preprocessing, postprocessing, stress calculation, etc.) but need some user manipulation to interconnect to one that is better for some other subproblem. This is the reason why we write a study on the available software and make suggestions on their usability. The purpose of this research is to briefly introduce selected software such as Rhino 3D, Grasshopper, Peregrine, Karamba, Galapagos, polyTop and PolyStress using topology optimization theory. Due to the demand to apply them for industrial applications, the additional goal is to make suggestions to make these software programs more user-friendly and to create algorithms to connect with software used in the industry, such as Consteel. This work also discusses the connected algorithms and optimization methods such as layout optimization by Peregrine, and topology optimization by polyTop and PolyStress. Several illustrative videos are provided as supplements. In addition to the text of this paper one can see demonstrations of the applications by the use of the provided YOUTUBE links.
