Hulladékká vált autóipari csatlakozók nemes- és színesfémtartalmának hasznosítása mechanikai előkészítést követő pirometallurgiai módszerrel = The utilization of the precious and non-ferrous metal content of waste automotive connectors by mechanical pre-treatment and a subsequent pyrometallurgical method

Fehér, Gergő and Illés, István Balázs (2025) Hulladékká vált autóipari csatlakozók nemes- és színesfémtartalmának hasznosítása mechanikai előkészítést követő pirometallurgiai módszerrel = The utilization of the precious and non-ferrous metal content of waste automotive connectors by mechanical pre-treatment and a subsequent pyrometallurgical method. BÁNYÁSZATI ÉS KOHÁSZATI LAPOK (2023-), 158 (2). pp. 44-52. ISSN 3057-9899

[img]
Preview
Text

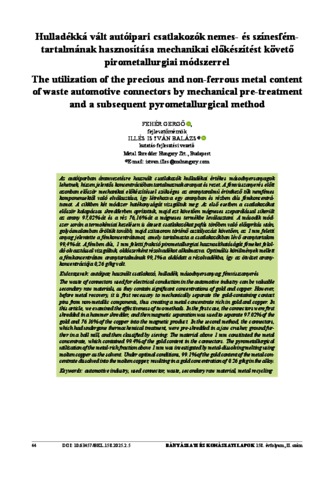

19678-Cikkszovege-78962-2-10-20250721.pdf - Published Version

Download (1MB) | Preview

Abstract

Az autóiparban áramvezetésre használt csatlakozók hulladékai értékes másodnyersanyagok lehetnek, hiszen jelentős koncentrációban tartalmaznak aranyat és rezet. A fémvisszanyerés előtt azonban először mechanikai előkészítéssel szükséges az aranytaralmú érintkező tűk nemfémes komponensektől való elválasztása, így létrehozva egy aranyban és rézben dús fémkoncentrátumot. A cikkben két módszer hatékonyságát vizsgáltuk meg. Az első esetben a csatlakozókat először kalapácsos shredderben aprítottuk, majd ezt követően mágneses szeparálással sikerült az arany 97,02%-át és a réz 76,16%-át a mágneses termékbe leválasztani. A második módszer során a termokémiai kezelésen is átesett csatlakozókat pofás törőben való előaprítás után, golyósmalomban őröltük tovább, majd szitasoron történő osztályozást követően, az 1 mm feletti anyag jelentette a fémkoncentrátumot, amely tartalmazta a csatlakozókban lévő aranytartalom 99,4%-át. A fémben dús, 1 mm feletti frakció pirometallurgiai hasznosíthatóságát fémeket feloldó olvasztással vizsgáltuk, oldószerként rézolvadékot alkalmazva. Optimális körülmények mellett a fémkoncentrátum aranytartalmának 99,1%-a oldódott a rézolvadékba, így az ötvözet aranykoncentrációja 0,26 g/kg volt. | The waste of connectors used for electrical conduction in the automotive industry can be valuable secondary raw materials, as they contain significant concentrations of gold and copper. However, before metal recovery, it is first necessary to mechanically separate the gold-containing contact pins from non-metallic components, thus creating a metal concentrate rich in gold and copper. In this article, we examined the effectiveness of two methods. In the first case, the connectors were first shredded in a hammer shredder, and then magnetic separation was used to separate 97.02% of the gold and 76.16% of the copper into the magnetic product. In the second method, the connectors, which had undergone thermochemical treatment, were pre-shredded in a jaw crusher, ground further in a ball mill, and then classified by sieving. The material above 1 mm constituted the metal concentrate, which contained 99.4% of the gold content in the connectors. The pyrometallurgical utilization of the metal-rich fraction above 1 mm was investigated by metal-dissolving melting using molten copper as the solvent. Under optimal conditions, 99.1% of the gold content of the metal concentrate dissolved into the molten copper, resulting in a gold concentration of 0.26 g/kg in the alloy.

Item Type: Article
Uncontrolled Keywords: automotive industry, used connector, waste, secondary raw material, metal recycling, autóipar, használt csatlakozó, hulladék, másodnyersanyag, fémvisszanyerés
Subjects: T Technology / alkalmazott, műszaki tudományok > T2 Technology (General) / műszaki tudományok általában
SWORD Depositor: MTMT SWORD
Depositing User: MTMT SWORD
Date Deposited: 22 Jul 2025 08:49
Last Modified: 22 Jul 2025 08:49
URI: https://real.mtak.hu/id/eprint/221396
