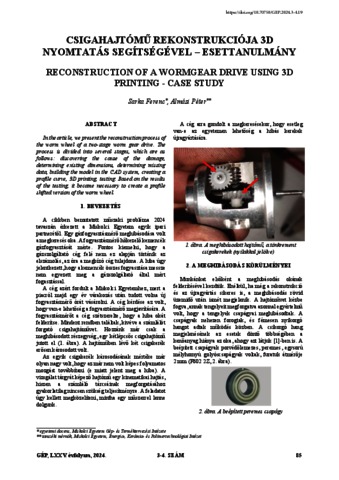

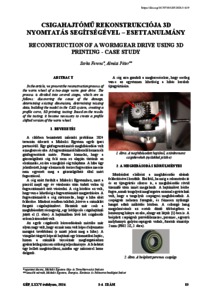

Sarka, Ferenc and Almási, Péter (2024) Csigahajtómű rekonstrukciója 3D nyomtatás segítségével : esettanulmány = Reconstruction of a wormgear drive using 3D printing : case study. GÉP, 75 (3-4). pp. 85-90. ISSN 0016-8572
|
Text
gep2024-3-4-19.pdf - Published Version Download (1MB) | Preview |
Official URL: https://doi.org/10.70750/GEP.2024.3-4.19
Abstract
In the article, we present the reconstruction process of the worm wheel of a two-stage worm gear drive. The process is divided into several stages, which are as follows: discovering the cause of the damage, determining existing dimensions, determining missing data, building the model in the CAD system, creating a profile curve, 3D printing, testing. Based on the results of the testing, it became necessary to create a profile shifted version of the worm wheel.
| Item Type: | Article |
|---|---|
| Subjects: | T Technology / alkalmazott, műszaki tudományok > T2 Technology (General) / műszaki tudományok általában |
| SWORD Depositor: | MTMT SWORD |
| Depositing User: | MTMT SWORD |
| Date Deposited: | 25 Aug 2025 14:22 |
| Last Modified: | 25 Aug 2025 14:22 |
| URI: | https://real.mtak.hu/id/eprint/222796 |
