Quality by Design Approach for Hot-Melt Extrusion Coupled Fused Desposition Modeling (HME-FDM) 3D Printing: A Systematic Review

Arany, Petra and Papp, Ádám and Nemes, Dániel and Fehér, Pálma and Ujhelyi, Zoltán and Bácskay, Ildikó (2026) Quality by Design Approach for Hot-Melt Extrusion Coupled Fused Desposition Modeling (HME-FDM) 3D Printing: A Systematic Review. PHARMACEUTICS, 18. ISSN 1999-4923

Preview

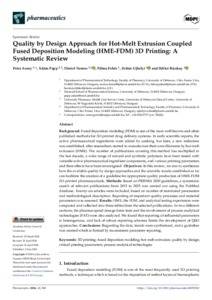

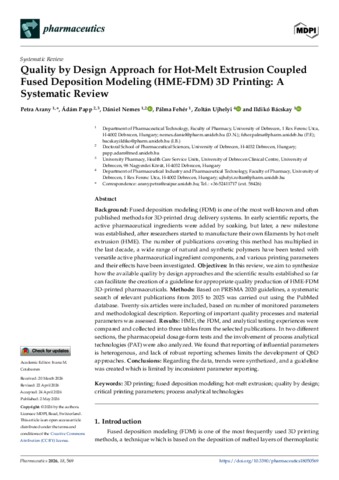

Text pharmaceutics-18-00569-v2.pdf - Published Version Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

Background: Fused deposition modeling (FDM) is one of the most well-known and often published methods for 3D-printed drug delivery systems. In early scientific reports, the active pharmaceutical ingredients were added by soaking, but later, a new milestone was established, after researchers started to manufacture their own filaments by hot-melt extrusion (HME). The number of publications covering this method has multiplied in the last decade, a wide range of natural and synthetic polymers have been tested with versatile active pharmaceutical ingredient components, and various printing parameters and their effects have been investigated. Objectives: In this review, we aim to synthesize how the available quality by design approaches and the scientific results established so far can facilitate the creation of a guideline for appropriate quality production of HME-FDM 3D-printed pharmaceuticals. Methods: Based on PRISMA 2020 guidelines, a systematic search of relevant publications from 2015 to 2025 was carried out using the PubMed database. Twenty-six articles were included, based on number of monitored parameters and methodological description. Reporting of important quality processes and material parameters was assessed. Results: HME, the FDM, and analytical testing experiences were compared and collected into three tables from the selected publications. In two different sections, the pharmacopeial dosage-form tests and the involvement of process analytical technologies (PAT) were also analyzed. We found that reporting of influential parameters is heterogenous, and lack of robust reporting schemes limits the development of QbD approaches. Conclusions: Regarding the data, trends were synthetized, and a guideline was created which is limited by inconsistent parameter reporting.
