The Deformaton of The Gear Hob’s Generating Surfaces Due to Re-Sharpening

Márton, Máté and Hollanda, Dénes (2018) The Deformaton of The Gear Hob’s Generating Surfaces Due to Re-Sharpening. Papers on Technical Science, 8. pp. 75-84. ISSN 2601-5773

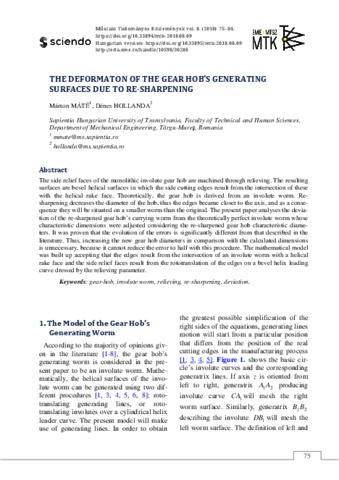

Preview

Text 10.33894_mtk-2018.08.09.pdf Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (259kB) | Preview

Abstract

The side relief faces of the monolithic involute gear hob are machined through relieving. The resulting surfaces are bevel helical surfaces in which the side cutting edges result from the intersection of these with the helical rake face. Theoretically, the gear hob is derived from an involute worm. Re-sharpening decreases the diameter of the hob, thus the edges became closer to the axis, and as a conse-quence they will be situated on a smaller worm than the original. The present paper analyses the devia-tion of the re-sharpened gear hob’s carrying worm from the theoretically perfect involute worm whose characteristic dimensions were adjusted considering the re-sharpened gear hob characteristic diame-ters. It was proven that the evolution of the errors is significantly different from that described in the literature. Thus, increasing the new gear hob diameters in comparison with the calculated dimensions is unnecessary, because it cannot reduce the error to half with this procedure. The mathematical model was built up accepting that the edges result from the intersection of an involute worm with a helical rake face and the side relief faces result from the rototranslation of the edges on a bevel helix leading curve dressed by the relieving parameter.
