Real Net Vault or Pseudo-Ribbed Net Vault? : Geometry, Construction and Building Technique of the Vault of the Reformed Church of Nyírbátor and the Nave Vault of the Franciscan Church of Szeged-Alsóváros

Jobbik, Eszter and Krähling, János (2023) Real Net Vault or Pseudo-Ribbed Net Vault? : Geometry, Construction and Building Technique of the Vault of the Reformed Church of Nyírbátor and the Nave Vault of the Franciscan Church of Szeged-Alsóváros. ÉPÍTÉS-ÉPÍTÉSZETTUDOMÁNY, 51 (3-4). pp. 229-256. ISSN 0013-9661

Preview

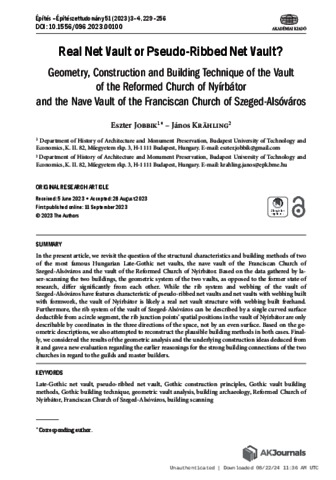

Text article-p229.pdf - Published Version Available under License Creative Commons Attribution. Download (10MB) | Preview

Abstract

In the present article, we revisit the question of the structural characteristics and building methods of two of the most famous Hungarian Late-Gothic net vaults, the nave vault of the Franciscan Church of Szeged-Alsóváros and the vault of the Reformed Church of Nyírbátor. Based on the data gathered by laser-scanning the two buildings, the geometric system of the two vaults, as opposed to the former state of research, differ significantly from each other. While the rib system and webbing of the vault of Szeged-Alsóváros have features characteristic of pseudo-ribbed net vaults and net vaults with webbing built with formwork, the vault of Nyírbátor is likely a real net vault structure with webbing built freehand. Furthermore, the rib system of the vault of Szeged-Alsóváros can be described by a single curved surface deductible from a circle segment, the rib junction points’ spatial positions in the vault of Nyírbátor are only describable by coordinates in the three directions of the space, not by an even surface. Based on the geometric descriptions, we also attempted to reconstruct the plausible building methods in both cases. Finally, we considered the results of the geometric analysis and the underlying construction ideas deduced from it and gave a new evaluation regarding the earlier reasonings for the strong building connections of the two churches in regard to the guilds and master builders.
