Damó, Gergely and Jakab-Farkas, László and Egyed-Faluvégi, Erzsébet (2025) Equipment for Measuring Conical Parts. MŰSZAKI TUDOMÁNYOS KÖZLEMÉNYEK (EN), 22. pp. 23-26. ISSN 2601-5773
|
Text

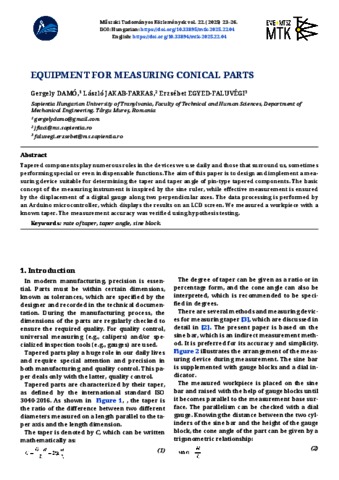

MTK22-EN-04-Damo.pdf - Published Version Download (1MB) | Preview |
Abstract
Tapered components play numerous roles in the devices we use daily and those that surround us, sometimes performing special or even indispensable functions. The aim of this paper is to design and implement a mea suring device suitable for determining the taper and taper angle of pin-type tapered components. The basic concept of the measuring instrument is inspired by the sine ruler, while effective measurement is ensured by the displacement of a digital gauge along two perpendicular axes. The data processing is performed by an Arduino microcontroller, which displays the results on an LCD screen. We measured a workpiece with a known taper. The measurement accuracy was verified using hypothesis testing.
| Item Type: | Article |
|---|---|
| Uncontrolled Keywords: | rate of taper, taper angle, sine block |
| Subjects: | L Education / oktatás > L1 Education (General) / oktatás általában T Technology / alkalmazott, műszaki tudományok > T2 Technology (General) / műszaki tudományok általában |
| SWORD Depositor: | MTMT SWORD |
| Depositing User: | Barbara Nagy |
| Date Deposited: | 10 Jul 2026 19:51 |
| Last Modified: | 10 Jul 2026 19:51 |
| URI: | https://real.mtak.hu/id/eprint/241942 |
