Investigation of the vibration modes of a drone rotor using optical methods

Gungl, Szilárd and Kimpián, Tibor Aladár and Masood, Muhammad Danish and Istók, Balázs and Tokaji, Kristóf and Horváth, Csaba (2026) Investigation of the vibration modes of a drone rotor using optical methods. In: ISMA2026 International Conference on Noise and Vibration Engineering, 2026.09.07-2026.09.09, Leuven.

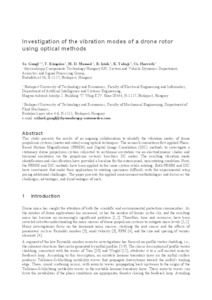

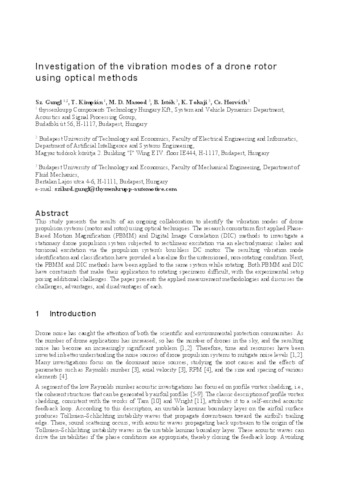

Preview

Text Contribution_578_final_1.pdf Download (2MB) | Preview

Abstract

This study presents the results of an ongoing collaboration to identify the vibration modes of drone propulsion systems (motor and rotor) using optical techniques. The research consortium first applied Phase-Based Motion Magnification (PBMM) and Digital Image Correlation (DIC) methods to investigate a stationary drone propulsion system subjected to rectilinear excitation via an electrodynamic shaker and torsional excitation via the propulsion system's brushless DC motor. The resulting vibration mode identification and classification have provided a baseline for the untensioned, non-rotating condition. Next, the PBMM and DIC methods have been applied to the same system while rotating. Both PBMM and DIC have constraints that make their application to rotating specimens difficult, with the experimental setup posing additional challenges. The paper presents the applied measurement methodologies and discusses the challenges, advantages, and disadvantages of each.
