Design of an Experimental Injection Moulding Tool for Testing Microstructured Cavity Surfaces

Kun, Krisztián (2021) Design of an Experimental Injection Moulding Tool for Testing Microstructured Cavity Surfaces. ACTA MATERIALIA TRANSYLVANICA (EN), 4 (2). pp. 97-102. ISSN 2601-8799

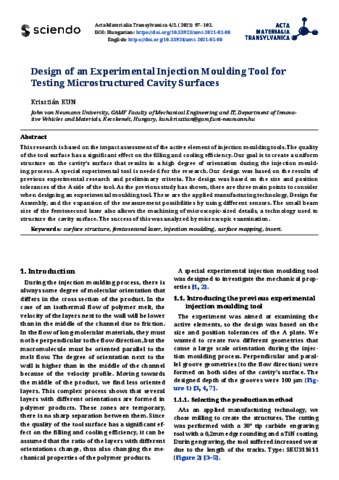

Preview

Text 10.33924_amt-2021-02-08.pdf Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (652kB) | Preview

Abstract

This research is based on the impact assessment of the active element of injection moulding tools. The quality of the tool surface has a significant effect on the filling and cooling efficiency. Our goal is to create a uniform structure on the cavity’s surface that results in a high degree of orientation during the injection moulding process. A special experimental tool is needed for the research. Our design was based on the results of previous experimental research and preliminary criteria. The design was based on the size and position tolerances of the A side of the tool. As the previous study has shown, there are three main points to consider when designing an experimental moulding tool. These are the applied manufacturing technology, Design for Assembly, and the expansion of the measurement possibilities by using different sensors. The small beam size of the femtosecond laser also allows the machining of microscopic-sized details, a technology used to structure the cavity surface. The success of this was analyzed by microscopic examination.
